QuickUSB Module - 5.0 Gbps USB 3.0

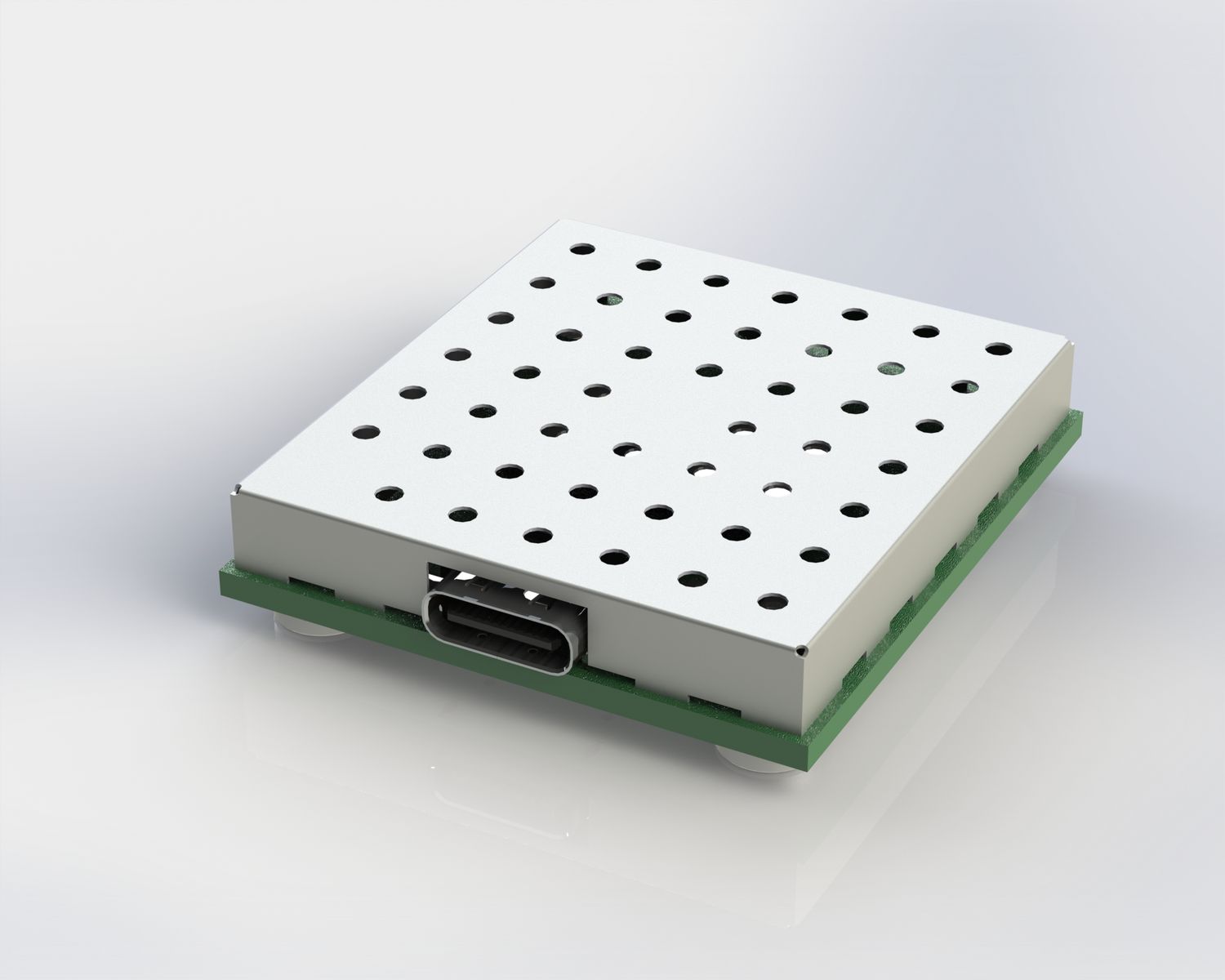

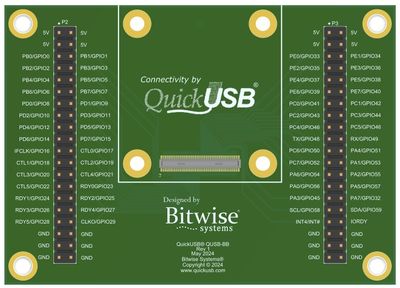

The QUSB3 is a Super-Speed USB module with a USB-C connector delivering up to 15W in a petite 38 x 35 mm format with EMI shielding. Its multi-function parallel port transfers data at up to 400MB/sec and it also has a full complement of low-speed interfaces. The module mates with a Hirose DF40C-80DP-0.4V(51) 2mm stack height connector via four M3 tapped standoffs.

Features

• SuperSpeed (5.0 Gbps) USB 3.0
• Based on the EZ-USB FX3
• All ports are 3.3V
• 32/16-bit multi-function parallel port
• UART
• I2C Master
• SPI Master
• Up to 8 GPIO
• FPGA configuration interface (with QuickUSB Firmware)
• Up to 15W (5V @ 3A) power
• Mates with Hirose DF40C-80DP-0.4V(51)
• 2 mm stack height
• M3 tapped standoffs

Documentation

QUSB3 Datasheet
